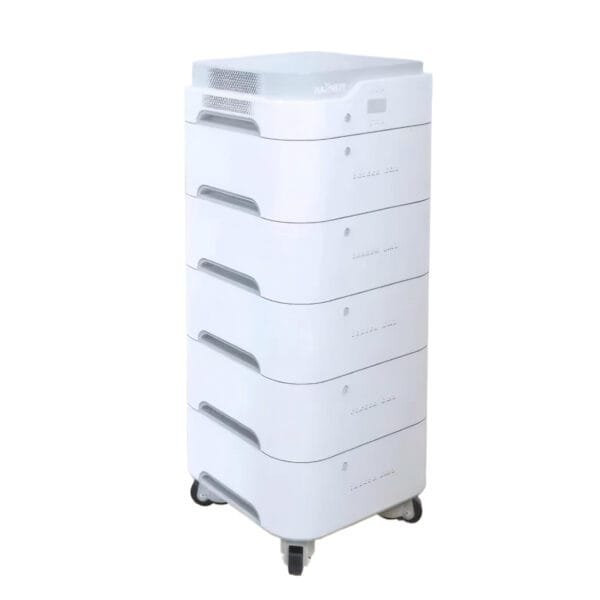

25kW Solar Stacked Lithium Battery
TUSANxBYD Joint Development
- Adopt BYD 4680 LiFePO4 battery
- Large-capacity emergency backup power
- Fast charging mobile power for cars
Please Fill Out the Form Below to Get a Quote
TUSANxBYD Joint Development
- Adopt BYD 4680 LiFePO4 battery
- Large-capacity emergency backup power
- Fast charging mobile power for cars
Name : Home Energy Storage
Model : JC-DD-25K
Rated Power :25000W
Battery Capacity :26114Wh
Lifespan : 5000+
Waterproof Grade :IP21
Rated Voltage : 51.2V
AC Rated Output Voltage : 110V/220V, 50Hz/60Hz(Optional)
AC Rated Output Power :25000W
DC48V Output :48V,25A Max.50A
Individual Battery Capacity :100Ah
Rated Capacity(Single layer) :5200Wh
Protection Board On-Resistance : ≤10mR
Charging Methods : CP/PV
AC Rated Input Voltage : 110V/220V(Optional)
AC Max Input Power :800W ~ 4500W
PV(MPPT) : 120V ~ 450V / Max.800W ~ 5600W
Charge Cut-Off Voltage : 58.4V / CELL
Standard Charging Current : 100A
Discharge Cut-Off Voltage : 44.8V / CELL
Maximum Discharge Current : 100A
Operating Temperature Range : -10℃~60℃
Communication Methods : DB15 Port Parallel, USB, RS485
Amount of Power Shipped : 30% ~ 50%
Inverter Net Weight(Single) : 18.65Kg±1Kg (41.1lbs ± 1lbs)
Battery Net Weight(Single) : 55Kg±1Kg (121.3lbs ± 1lbs)
Base Net Weight(Single) : 12.75Kg±1Kg (28.1lbs ± 1lbs)
Overall Weight : 86.4Kg±1Kg (190.5lbs ± 1lbs)
Inverter Dimensions(L×W×H) : 500mm×500mm×150mm
Battery Dimensions(L×W×H) : 500mm×500mm×230mm
Base Dimensions(L×W×H) : 500mm×500mm×151mm
